IF Brand Precise displacement workbench series, Use widely in industrial applications. Such as Precision moving position correction; Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on. High precision and smooth movement can be achieved by using cross roller guide. The main materials is aluminium alloy, light weight, suitable for all other devices.All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than our industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.
| Give us advice and ideas |
 |
 |
 |
 |
|
SPECIFICATION |
||||
|
MODEL |

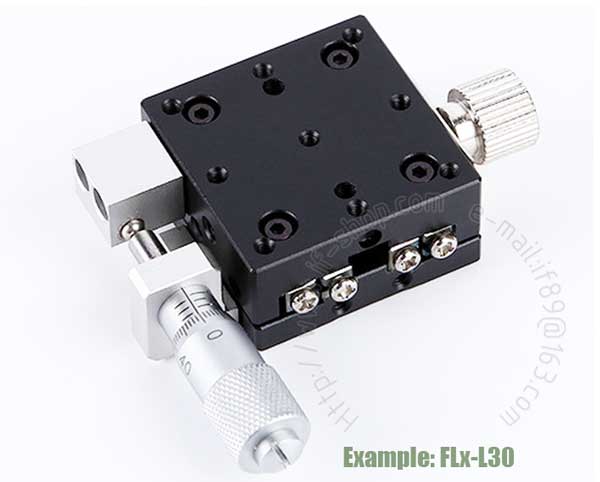

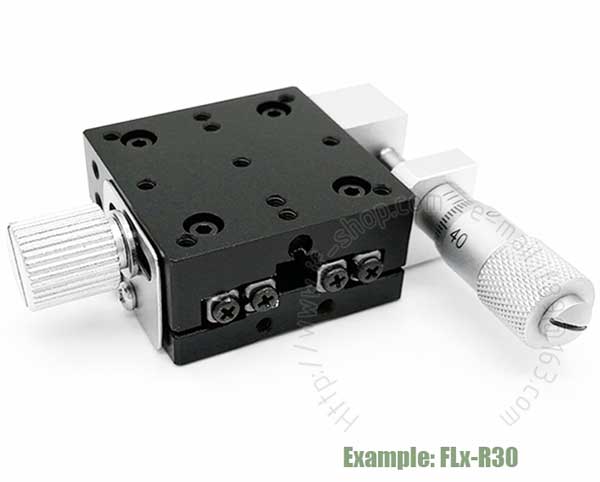

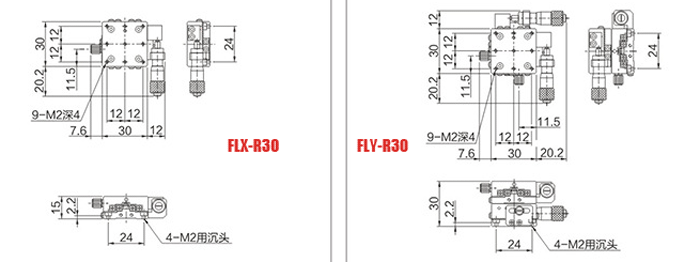

IFLX-L30 IFLX-R30 |

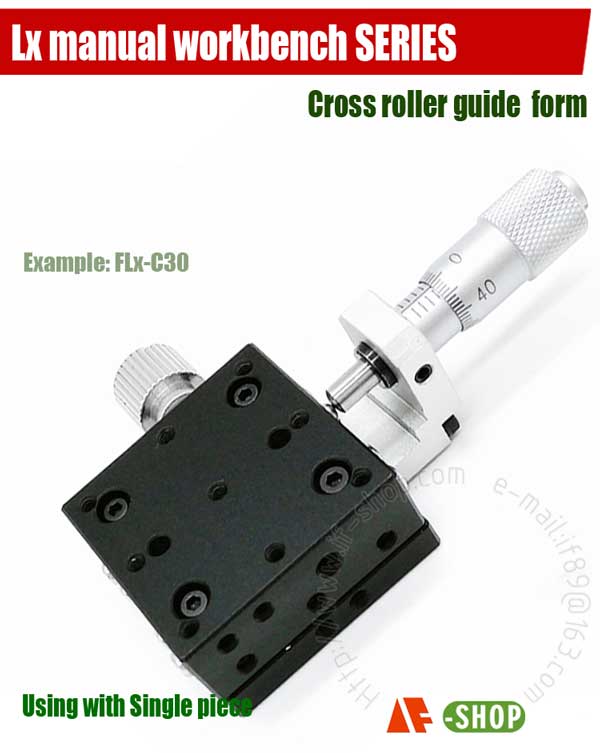

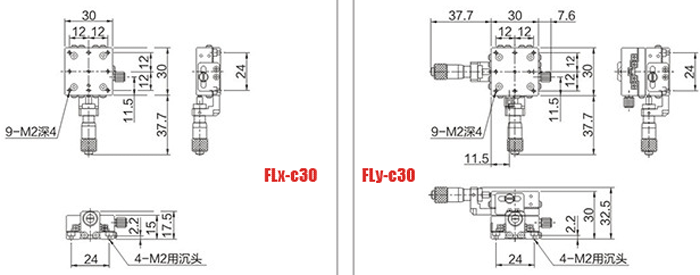

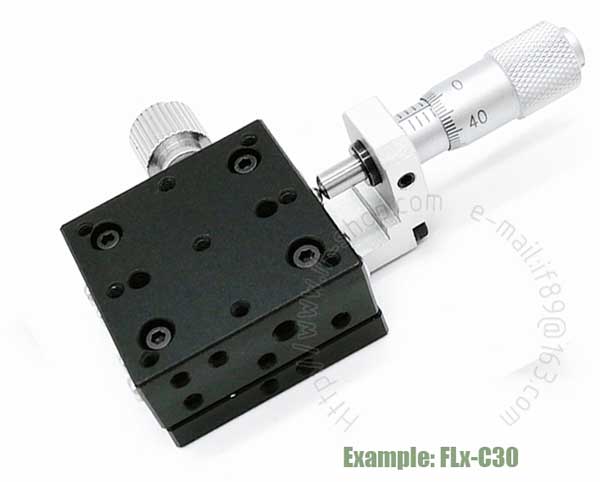

IFLX-C30 |

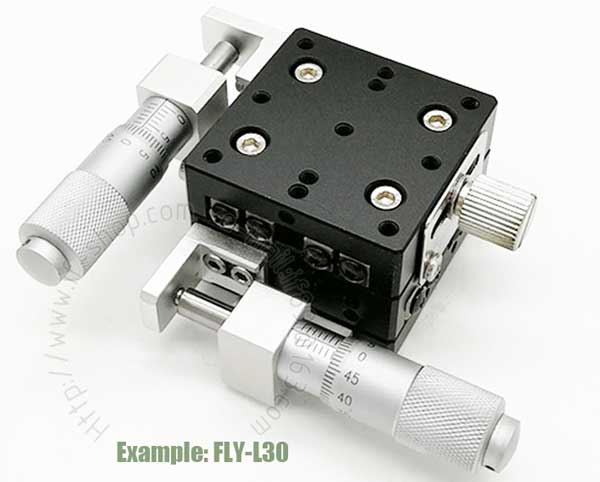

IFLY-L30 IFLY-R30 |
IFLY-C30 |
|
Movement |
X Horizontal parallet |
X.Y Horizontal parallet | ||
|
Body |
High-pressure Aluminum ( black) |
|||
|
Drive mode |
Micrometer |
|||
|
Table size |
30x30mm |
30x30mm |
30x30mm |
30x30mm |
|
Table thickness |
15mm |
15mm |
30mm |
30mm |
|
stroke |
±3mm |
|||
|
workbench |
14.7N |
14.7N (1.5kgf) |
14.7N (1.5kgf) |
|
|
Parallelism of movement |
≦0.005mm |
|||
|
Micrometer |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
|
Parallelism |
0.02mm |
0.04mm | ||
|
Weight |
0.3kg |
0.3kg | 0.6kg |
0.6kg |
| Levelness | 0.02mm | 0.02mm | 0.02mm | 0.04mm |

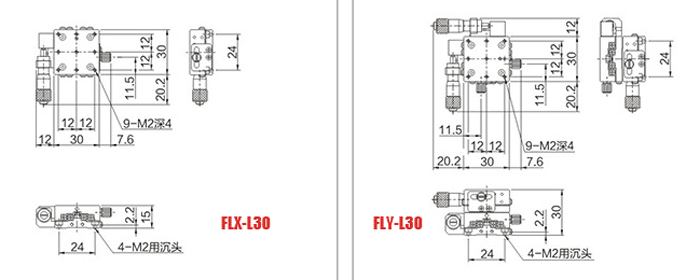

| FLX-30 Series |
|
|
 |
 |
