• Rotatable Angle workbench series(Standard type)

    Price:   $57.00

    • Model: IFRS-L Serise
    • Shipping Weight: 0.25kg
    • 88 Units in Stock
    • Manufactured by: IF MACHINERY


    Please Choose:

    color
    Material
    • IFRS100-L (+0.8kg)
    • IFRS125-L (+0.9kg)
    • IFRS60-L
    • IFRS90-L (+0.5kg)
    -+
    (complete orders today,deliverd around 29/12/2024)
    New Products
    Ink cup for pad printer (inner dia:Ø120mm Adjustable)
    $280.00  $252.00-10%
    Manual workbench parallel adjustable series LX(Y) 90mm
    $70.00
    Manual workbench parallel adjustable Z axis series
    $35.00
    Manual workbench parallel adjustable series LX(Y) 80mm
    $68.00
    Details

        Precise displacement workbench, Use widely in industrial applications.Such as Precision moving position correction;  Laser moving; Testing adjustment; Optical alignment; Optical fiber tuning; Equipment fixture; University research unit for experiment and so on. All this series workbench with quality-material,high advance manufacturing technology, Full testing for ensure all kind of our products precision higher than oure industry standard. IF MACHINERY will supply our comprehensive products with price, over your expected is our business purpose.


     Give us advice and ideas





    SPECIFICATION

    MODEL

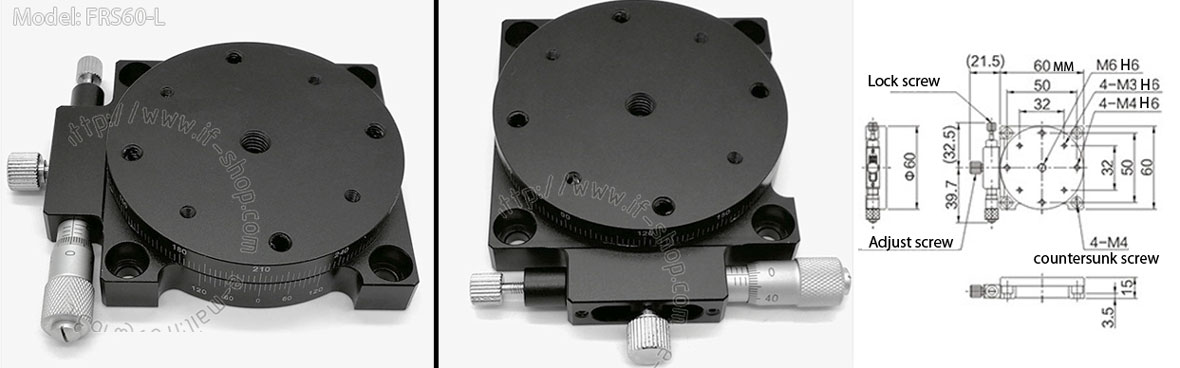

    IFRS60-L

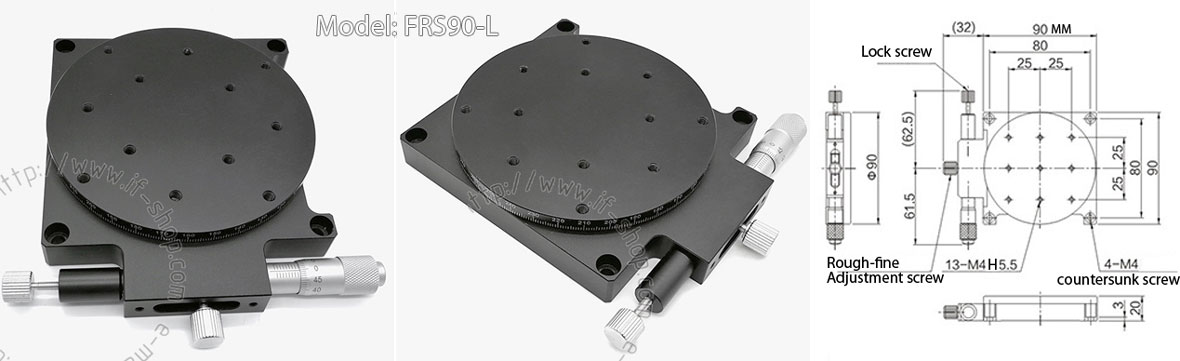

    IFRS90-L

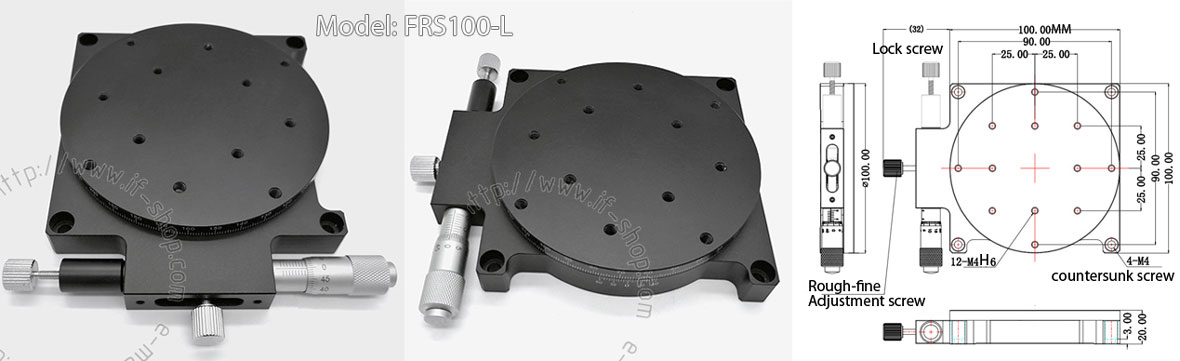

    IFRS100-L

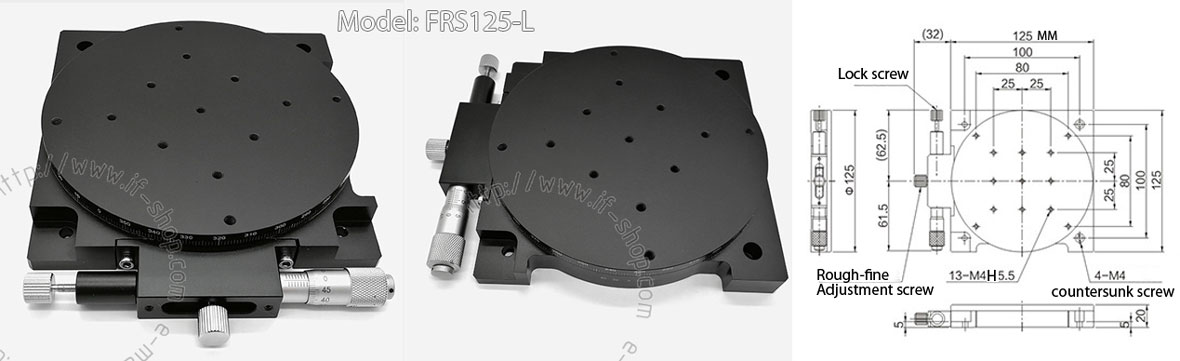

    IFRS125-L

    Movement Direction

    Rotate around the z axis

    Body Material

    Aluminum black

    Drive mode

    Micrometer

    Table size

    Φ60mm

    Φ90mm

    Φ100mm

    Φ125mm

    Table thickness

    15mm

    20mm

    20mm

    20mm

    stroke

    360°Rough Adjustment / ±5°Fine Adjustment

    workbench load

    29.4N(3kgf)

    Minimum scale unit

    10′

    5′

    Micrometer unit

    ≈0.96′

    ≈0.6′

    ≈0.6′

    ≈0.46′

    Parallelism

    0.03mm

    Weight

    0.25kg

    0.6kg

    0.8kg

    1.2kg
